Guidolin Girotto are high precision cutting systems
that can be applied to all types of flexible
technical materials like adhesive tapes and double
sided adhesives, materials expanded to open cells,
to closed cells, coupled materials, felt, rubbers,
abrasives, filters, elastic materials, fabric,
non-fabric, fine
metallic materials
etc. in many sectors
throughout the world our cutting lines and flat and
rotary die casting for medium and total cut casting
guarantee high standards of quality and
productivity. |
|
Machines designed and built according to the
client’s requirements, which we follow-up with care
and professionalism in the after-sales service too |
|
For more information: |
|
http://www.guidolindavide.it/ |
 |
 |
Automobile |
|
|
Aerospace |
|
|
Electronic |
|
|
Complements |
|
|
Converting |
|
|
Packaging |
|
|
Pharmaceutical |
|
|
Labels |
|
|
|
|
|
| |
| |
|
|
CONVERTING SYSTEMS, PRECISION
CUT AND KISS CUTTING MACHINES |
|
|
 |
|
Great precision, flexibility, low operating cost and
easiness of use are the principal qualities of these new
lines. This machines are specialized in cutting of adhesive
and double-sided adhesive tapes with the widest range of
systems in the world for the kiss-cutting.
|
 |
See Guidolin Videos |
|
|
|
|
GD-151
EL |
|
Flat Die-Cutting
precision machine |
 |

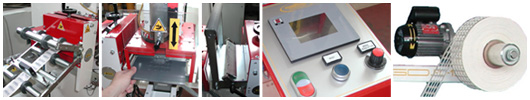

| The
GD 151 EL
is a fully
automatic
flat die-cutting
machine
suitable for
many
different
business
sectors:
automobiles,
textiles,
paper
manufacturing,
packaging,
rubber
articles,
foam product,
felt
articles,
double-side
adhesive,
gasket and
seals,
velcro,
labels, ecc. |
|
|
|
 |
Dimensions:
2000x1200x1800mm |
|
|
Machine power: 5Tons |
|
|
Cutting plates:
200x200mm |
|
|
Stockes per minute:
30-150 |
|
|
Electrical
connection:
380V-50Hz-3Ph+n+pe |
|
|
Weight: 550Kg |
|
 |
|
|
Guides at rolls in
the inboard side to
correctly algn the
material |
|
|
System to quickly
replage the tool |
|
|
Scrap rewinder
system |
|
|
Control panel with
touch screen |
|
|
Material rewinder |
|
|
 |
|
|
GD-RO
RTV |
|
Rotary die-cutting for
total cut and kiss cutting |
|
|

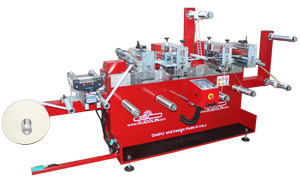

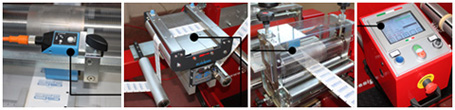

| The GD RO RTV machine
always with absolute flexibility can cut at
register with motorized die-cutting station.
The same machine can make also the cut at
flight (in speed) with distances preselected
by controller guaranteeing high production
and repetitiveness. The machine can work in
standard way with a reference speed. |
|
|
|
|
|
Dimensions and
weights in accord
with the composition
of the machine and
in accord with the
web width. |
|
|
Weight: 1500Kg |
|
|
Voltage:
380V-50Hz-3Ph+N+PE |
|
|
Rotary max speed:
100 meters/min |
|
 |
|
 |
|
|
GD-LASER |
|
Maquina de corte y
marcado laser combinado con troquel
rotativo |
|
|

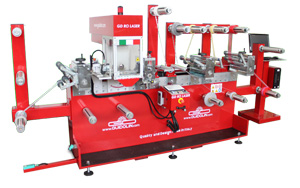

| Machine combines die-cutting rotary tools
with a laser station to perform more complex
processing while maintaining high quality
and precision. |
|
|
|
|
|

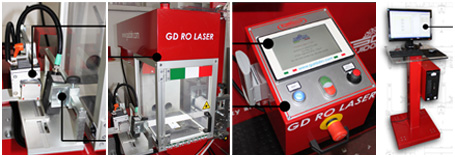

The laser station
allows for simple
and complex cuts,
not achievable with
normal rotary tools,
providing hogh
quality cutting and
precision, in
continuous or start-stop
working |
|
|
Through the PC
workstation, you can
manage the
parameters of the
laser station and
convert graphic
files of shapes to
be cut |
|
|
Touch screen for
quick and easy acces
to the parameters of
the machine |
|
|
Dimensions and
weights in accord
with the composition
of the machine and
in accord with the
web width. |
|
|
Weight 1500Kg |
|
|
Voltage
380V-50Hz-3Ph+N+PE |
|
|
Working area
200x200mm or
350x350mm |
|
 |
|
 |
|
|
GD-FFC |
|
Automatic cutting knife
machine. Continuous proccess:
Unwinding, cutting and rewinding. |
|
|

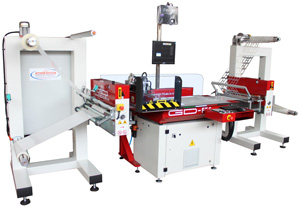

| Is of great flexibility and allows to cut
perfectly and perpendicularly high thickness
materials both at kiss cutting and total
cutting trough a plotter system, all without
the use of tools. The realizable
applications can be: from sheet, from roll
to roll to sheet (set), with possibility of
lamination, cleaning of cut pieces,
rewindings, shear and different other
complex operations. |
|
|
|
|
|
Cut dimensions:
10000x600mm |
|
|
Head cutting with
knife, drills, pen,
andpricker |
|
|
Projection system
for manually
placement of pieces
in cut area. |
|
|
Vacum pump systems
for fix the material
before cut |
|
|
Controlled with a
special and friendly
software under
Windows O.S. |
|
|
 |
|
|
GD-151 |
|
Precision die-cut flat 5
tons |
|
|
|
|
N.1
automatic de-coiler
at variable speed |
|
|
Input runners |
|
|
Very high precision
casting head |
|
|
Motorised electronic
transporter |
|
|
N.2 electronic de-coiler
with independent
regulation |
|
|
Control computer for
machine management |
|
|
Integrated
electronic panel |
|
|
Machine power of 5
tons |
|
|
Work area:
200x200mm |
|
| The die-cutting machine
looks in compact dimensions
guarnteeing a very high
performance |
|
|
 |
|
|
GD-301 |
|
Precision die-cut flat
10 tons |
|
|
|
|
N.1
automatic de-coiler
at variable speed |
|
|
Input runners |
|
|
Very high precision
casting head |
|
|
Motorised electronic
transporter |
|
|
N.2 electronic de-coiler
with independent
regulation |
|
|
Control computer for
machine management |
|
|
Integrated
electronic panel |
|
|
Machine power of 10
tons |
|
|
Work area:
320x320mm |
|
| The die-cutting machine
looks in compact dimensions
guarnteeing a very high
performance |
|
|
 |
|
|
GD-401 |
|
Precision die-cut flat
520tons |
|
|
|
|
|
|
|
N.1 automatic de-coiler
at variable speed |
|
|
Input runners |
|
|
Very high precision
casting head |
|
|
Motorised electronic
transporter |
|
|
N.2 electronic de-coiler
with independent
regulation |
|
|
Control computer for
machine management |
|
|
Integrated
electronic panel |
|
|
Machine power of 20
tons |
|
|
Work area:
400x400mm |
|
| The die-cutting machine
looks in compact dimensions
guarnteeing a very high
performance |
|
|
 |
|
|
GD-654 |
|
Precision die-cut flat
30 tons |
|
|
|
|
N.1 automatic de-coiler
at variable speed |
|
|
Input runners |
|
|
Very high precision
casting head |
|
|
Motorised electronic
transporter |
|
|
N.2 electronic de-coiler
with independent
regulation |
|
|
Control computer for
machine management |
|
|
Integrated
electronic panel |
|
|
Machine power of 35
tons |
|
|
Work area: 400x400 /
500x500 / 600x600mm |
|
| The die-cutting machine
looks in compact dimensions
guarnteeing a very high
performance |
|
|
|
|
|
GD-RO
175/250 |
|
Automatic rotary die-cutter for
large productions |
|
|
|
|
The rotary
die-cutting is
compact,
studied and
developed for the
demands of adhesive/bi-adhesive
casting or any other
flexible material |
|
|
It has many modular
stations, numerous
accessories and
computer operated
control system which
make then very
versatile, fast and
easy to handle
guaranteeing high precision
cutting |
|
|
Amongs
the most requested
optional modules we
find the expansion
axis, the touch
screen computer, the
part piling system,
aspiration, etc
|
|
|
Measurements:
3500x550/620x1750mm |
|
|
 |
|
|
|
|
GD-X1 |
|
Slitter |
|
|
|
The GD X1
model automatic pneumatic
electronic cutter makes
sheets and plates through
blade and back-blade.
It is equipped with:
roller transport (coated
with silicon rubber for
adhesive materials) motorised
with a step-by-step motor,
with excellent placement
precision, total computer
control able to verify the
condition of the fire optics
which are those that, at the
same time, determine the
placement, presence or
absence of previously die,
power and solidity. |
|
 |
|
|
GD-K1 |
|
Rewinder |
|
|
|
Continuous
de-coiler with two motorised
axis with electronic fiction
to recuperate the remmants
and the counted material. As
an option it can come
equipped with a TL group for
the longitudinal cut for the
formation of more coils from
just one material strip and
with a third axis to recoil
the counted material. Material
passage:
200, 300, 400, 500, 600 mm |
|
 |
|
|
GD-KK |
|
Coupler-rolling |
|
|
|
Continuous coupler with two
axis with motorised roller
laminator, photocell control
for the presence and feeding
of material. As an option it
can be equipped with more
axis and de-coiler to
recuperate the liner |
|
Material
passage: 200, 300, 400,
500, 600 mm |
|
 |
|
|
|
|
