SP-07
2 Axis automatic gluing system |
|
 |
|
Plotter type machine with 2
axis hot melt adhesives and
vinyl. Hot melt processed by
application or spray.
Application vinyl processed
directly. Possibility to
generate trajectories from
DXF vector formats. CAD
design programmes integrated
in the machine’s management
software. Possibility of
placing up to 3 utensils:
hot melt applicator, hot
melt spray and vinyl
applicator. Head work speed
of 650 mm/sec.
|
|
|
|
 |
|
|

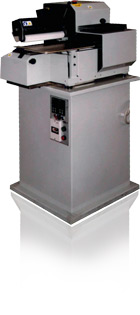

TH82-300
Gluer for adhesives (HOT MELT) |
|
|
|
The TH-82 glue model allows
for the preparation of
thermo-plastic adhesives
(hot melt) by roller, the
amount of glue is regulated
with precision by a rubber
brush that passes the glue
over the roller. The work
table has an adjustable
runner to define the width
of the work or work on the
edge or by material sheets.
The material thickness and
the pressure placed on the
material are adjustable.
|
|
|
|
 |
|
|
|
|
|
|
CUTTING AND ENGRAVING LASER
MACHINE |
|
 |
|
Series of machines ideal for
the sectors of publicity,
decoration, art and artisan
works, toys, patterns, paper
works and other industries.
To work on non-metal
materials like wood, paper,
synthetic resin, acrylics,
methacrylates and others.
|
 |
 |
Cutting technology
with great
precision,
trajectories and
refined finishes
that do not need
posterior cleaning. |
|
|
Table with automatic
height adjustment,
the maximum height
of the material to
be worked is 210mm |
|
|
The Rotary unit is
optional, special to
process cylindrical
objects.
|
|
|
Data transmission
via USB from the
design CAD , it has
an internal memory
to save the
different Jobs and
process them
automatically. |
|
|
Water refrigeration,
stable thermal
protection which
guarantees a long
laser life. |
|
|
Communication driver
under the Windows
environment
completely
compatible with
Photoshop,
CorelDraw, Autocad,
amongst others.
|
|
|
Model |
CM90 |
CM120 |
| Work area
(mm) |
1000X620X210 |
1300X620X210 |
| Table (mm) |
1050x680 |
1350X750 |
| Volume (mm)
|
1600X1200X1030 |
1900X1200X1030 |
| Functions |
Engraving/Cut |
Engraving/Cut |
| Maximun material
weight |
25kg |
25kg |
| Cutting speed (cm/min) |
<=3800 |
<=3800 |
| Resolution |
8000dpi |
8000dpi |
| Laser
power
(W) |
Glass tube
60/80W, RF 100W tube |
Glass tube
60/80W, RF 100W tube |
| Consumption
power |
From 600 to 1500W |
From 600 to 1500W |
| Net weight (kg) |
150 |
160 |
| Large Rotary
unit |
Diameter from 8
to
100mm |
Diameter from 8
to
100mm |
| Small rotary
unit |
Diameter from 5
to
20mm |
Diameter from 5
to
20mm |
|
|
|
|
 |
|
|
MCO2 LASER ENGRAVING MACHINE |
|
 |
|
Co2 laser engraving machine.
This a universal laser
engraving machine that can
also be used as an
industrial machine for
engraving. It is widely
applicable in artisan works,
publicity decoration, toys,
electronics, cloths,
leather, paper products,
etc. Moreover, this
equipment is good for
treating non-metal materials
like textiles, leather,
wood, organic glass,
acrylic, paper products and
more.
|
|
|
|
|
Optional CO2 RF
laser made in the
U.S.A. |
|
|
Superior
galvanometric
system, the machine
can comb the
materials at
7000mm/sec. |
|
|
The laser engraving
machine comes with
already installed
lenses. The
smaller light
beam guarantees high
quality finishes. |
|
|
Available with
manual and automatic
work areas. The work
area can be enlarged
to facilitate
feeding and
unloading of
material during the
work process. |
|
|
Model |
MK |
| Laser Source |
RF CO2 laser
made in the U.S.A .
30W/55W/100W |
| Wave length |
10.64μm |
| Pulse frequency |
≤20kHz |
| Work area |
From 70mm×70mm to
300mm×800mm |
| Scan speed |
≤7000mm/s |
| Total power |
800W /1400W /
2700W |
|
|
|
|
 |
|
|
CO2 LASER ENGRAVING MACHINE
WITH 3
AXIS |
|
 |
|
 |
|
|
YAG LAMP LASER ENGRAVING
MACHINE |
|
 |
|
 |
|
|
|
|
|
|
CERIM K-78
TP |
|
|
|
Machine to centre
and mount
toes
and soles.
Programmable tracer
system. |
|
CERIM, model
K 78 "Tracer
Programmable". |
|
Tracer system that
fixes the fitting of
any shoe of any size
without additional
costs. All the time,
regulations and
functions of the
machine are easily
programmable through
the touch screen
reducing start and
production change
times to the
maximum. Possibility
to memorise up to 50
programmes. The oil
hydraulic working of
all movements offers
speed, precise
pressure control and
simplicity in
handling. All with
CERIM quality and
reliability. |
|
|
|
 |
|
|
 |
|
|
CERIM
K-201T |
|
|
|
Machine to centre
and mount
toes
and soles.
Programmable tracer
system. |
|
CERIM, model K 201T,
hydraulic,
Electronic, 9
independent pins
with hydraulic
closing device, SZ
group for fitting in
the meeting point
sole-shank, tracer
injection system,
Teflon group ,
triple shear lift,
lateral pressers,
automatic
independent press
run over three
groups of pins, with
2 sets of SZ plaques
and 2 Teflon’s. |
|
|
|
|
|
|
 |
|
|
|
|
|
|
CERIM K-176 |
|
|
|
Machine to
backcomb-glue the
assembled shoe,
computerised, front
loading, with a head
over which two
implements are set
up with the
possibility or
working
alternatively. |
|
Automatic utensil
change, works with
any type of
footwear, two work
stations, use of any
type of glue. 5º
programmable
axis; only machine
in the sector that
has the possibility
of positioning any
utensil in straight
mode over the shoe,
this is parallel to
the shank, therefore
reproducing manual
backcombing to the
utmost. |
|
Thanks to the
possible inclination
of
5º the axis
executes operations
on the sole edge and
also on high heels
and very narrow
boxes. |
|
|
|
|
|
|
 |
|
|
|
|
|
|
ATOM GL12M8 |
|
|
|
|
|
 |
|
Machine to reduce
leathers and
synthetic materials,
with 2 transport
speeds, incorporated
friction, constant
speed blade, table,
motor, aspirator.
|
|
|
 |
|
|
FAV AV-2 |
|
|
|
|
|
 |
|
Machine to reduce
leather, with
aspiration, great
simplicity and
precision, with the
possibility of
incorporating
transport speed
variator.
|
|
|
|
|
 |
|
|
|
|
|
|
ATOM TF10
/E /M /S |
|
|
|
|
|
New range of
thermo-gluing
folding
machines TF10 -
TF10E - TF10M -
TF10S for leather
and fabrics, this is
the result of
constant research on
every part of the
machine to improve
work quality and
simplify use. The
four machine models
are different in
their equipment in
some parts of the
mechanics and
electronics to
respond to the
different production
demands: |
|
model TF 10
is the most advanced
solution, complete
with photocells and
a device that does
not alter the hem
width in the
internal curves and
the possibility of
programming the
Lumber of cuts to
made in these curves
to avoid part
deformation. The
machine holding
table is adjustable
in height to adapt
to the operator’s
height, sitting or
standing. |
|
model TF 10 E
can do the same jobs
as the TF 10 but
needs more operator
skills as it does
not have the same
automatisms |
|
model TF 10 M
has the same
characteristics as
the
TF10E but the
execution of the
cuts in the internal
curves and the
reduction of the
passes in the
external curves are
done using manual
power steering
controls while in
the TF 10 E this is
done by photocells |
|
model TF 10 S
is specific for
working with flat,
moulded and "fussbett"
sole (maximum height
of 8-10mm) |
|
|
 |
|
|
|
|
|
|
CAMOGA
C-420 C-520
C-620 C-720
C-820 |
|
|
|
 |
|
The leather
splitting
machines in this
line are designed
and built according
to main fundamentals
of the Camoga
products: |
| QUALITY in the materials and construction of the components to obtain high performances that last a long time. |
|
|
SIMPLICITY in the
use and maintenance
to limit
unproductive
stoppages and usage
expenses. |
|
They are therefore
machines that are
RELIABLE, ECONOMIC
AND FLEXIBLE, as
they allow us,
without any
qualitative
sacrifice, high
production with
ideal adaptation to
the different work
methods and the
characteristics of
all materials. |
|
The wide range of available models satisfies all demands, from artisan workshops to large industry. |
|
|
|
 |
|
|
|
|
|
|
ELETTROTECNICA B.C. BC 305 |
|
|
|
 |
|
|
| Pressing Owens for shoes and boots with minimum energy consumption, up to 5 years warranty. |
| Also: Vaporisers for tips, cold conditioned cabins, pressing modules, thermo-presses with hot air and steam, and dryers and re-activators |
|
|
|
|
|
 |
|
|
ELETTROTECNICA B.C. BC
390/391 |
|
|
|
|
|
Pressing Owens for
shoes and boots with
minimum energy
consumption, up to 5
years warranty. |
|
Also: Vaporisers for
tips, cold
conditioned cabins,
pressing modules,
thermo-presses with
hot air and steam,
and dryers and
re-activators |
|
|
|
|
 |
|
|
|
|
|
|
ELETTROTECNICA B.C. 756 |
|
|
|
|
|
|
|
Universal hydraulic
press machine to
press soles with
self-regulating
cushioning,
automatic heel
disposition |
|
|
|
|
 |
|
|
|
|
